| 功能Function |
输入电压范围Input voltage |
输出正波和负波不对称性Dissymmetry of output plus and minus wave |
信号控制电压Controlling signal voltage |
控制电流Control current |
手动电位计电阻Resistance of manual potentiomete |
Cooling |
Ambient temperature |
Storage temperature |
| Arms | VDC | mA | KΩ | m/s | ℃ | ℃ | ||
|

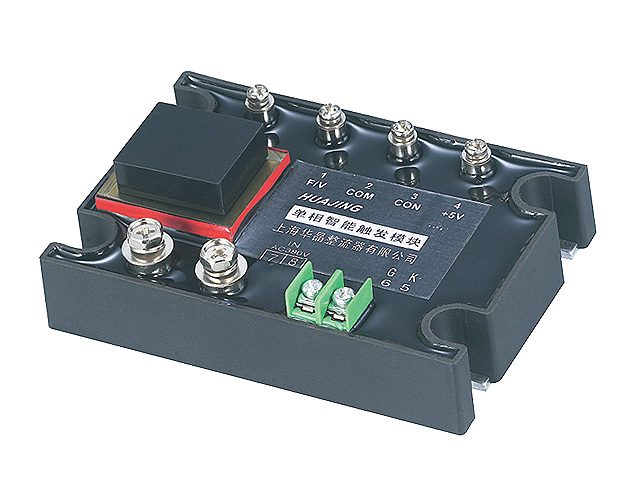

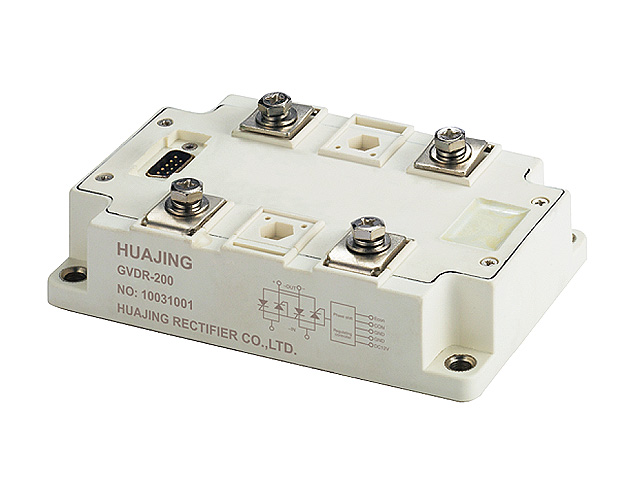

单相晶闸管调压整流 Single phase thyristor voltage rectifying |
220 ± 20% |
2% | 0-5 | 4-20 | 10 |
air cooling heatstink, wind speed ≥ 6 |
-30~+40 | -25~+55 |
|
单相晶闸管交流调压 Single phase thyristor type AC voltage adjustment rectifying |
220 ± 20% 380 ± 20% 440 ± 20% |
2% | 0-5 | 4-20 | 10 | -30~+40 | -25~+55 |
主电路参数
| 额定电流Nominal current |
可控硅截止电压Interdiction voltage
of SCR
|
断路漏电电流(最高)Breaking leakage
current(Max.)
|
导通压降(最高)Making voltage
drop(Max.)
|
绝缘电压(端子/底板)Insulating voltage
(terminal/soleplate)
|
重量Weight |
| Arms | Vpk | mA rms | V rms | V rms | kg |
| 50 | 800-1200 | ≤8 | 1.6 | ≥2500 | 0.425 |
| 70 | 800-1200 | ≤10 | 1.6 | ≥2500 | 0.425 |
| 100 | 800-1200 | ≤10 | 1.6 | ≥2500 | 0.425 |
| 120 | 800-1200 | ≤10 | 1.8 | ≥2500 | 0.425 |
| 200 | 800-1200 | ≤10 | 1.8 | ≥2500 | 0.425 |
| 250 | 800-1200 | ≤15 | 1.8 | ≥2500 | 2.2 |
| 350 | 800-1200 | ≤15 | 1.8 | ≥2500 | 2.2 |
| 500 | 800-1200 | ≤20 | 1.8 | ≥2500 | 2.2 |
